Unlimited Bed Rails: General Installation Instructions

Dry fit the Unlimited Bed Rail system by holding it up to against the flat portion of the inside of the bed to check for clearance and desired location. Using a marker (either a marking pen or piece of tape) to mark your desired location.

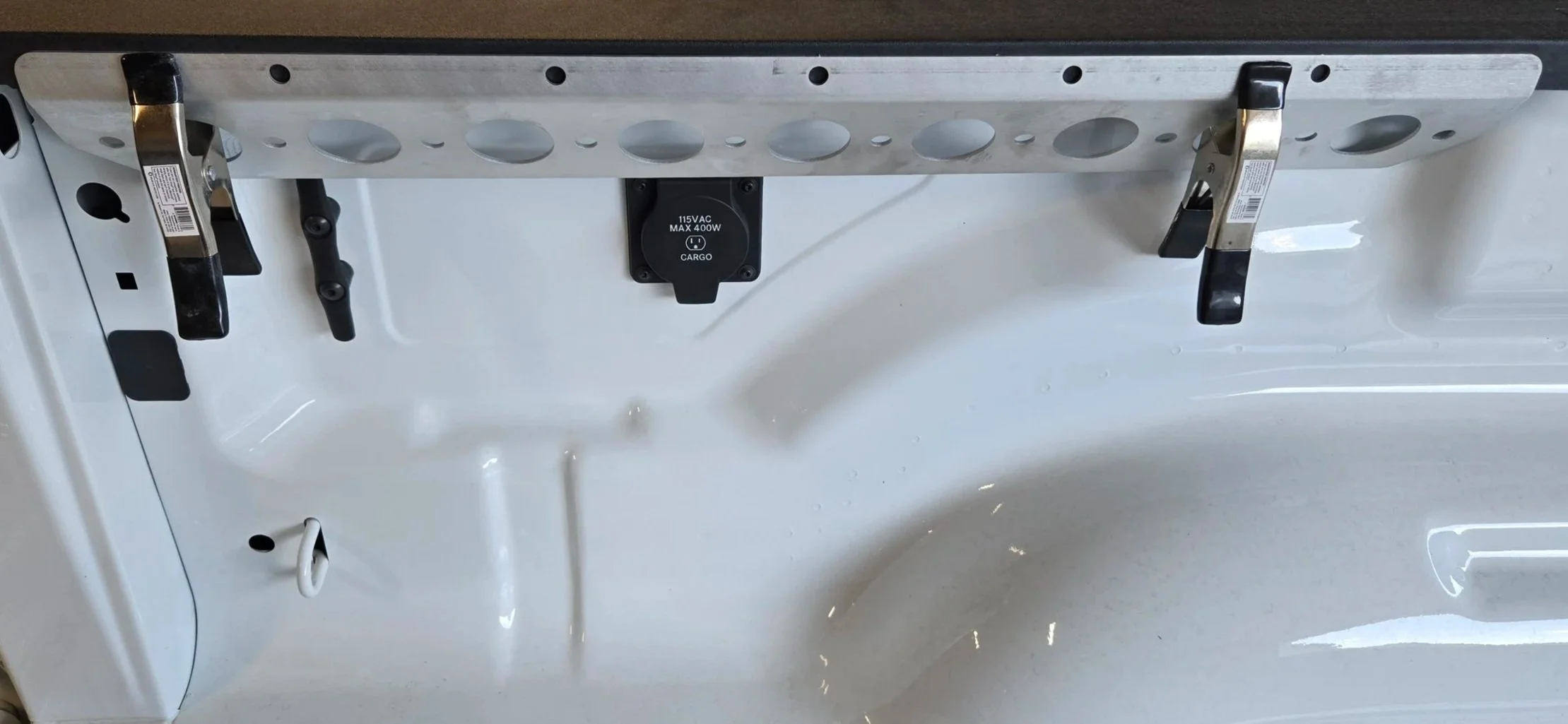

Interior of a Ram long Bed with a Unlimited Bed Rail bracket being placed for installation, black and silver clamps, and an electrical outlet panel.

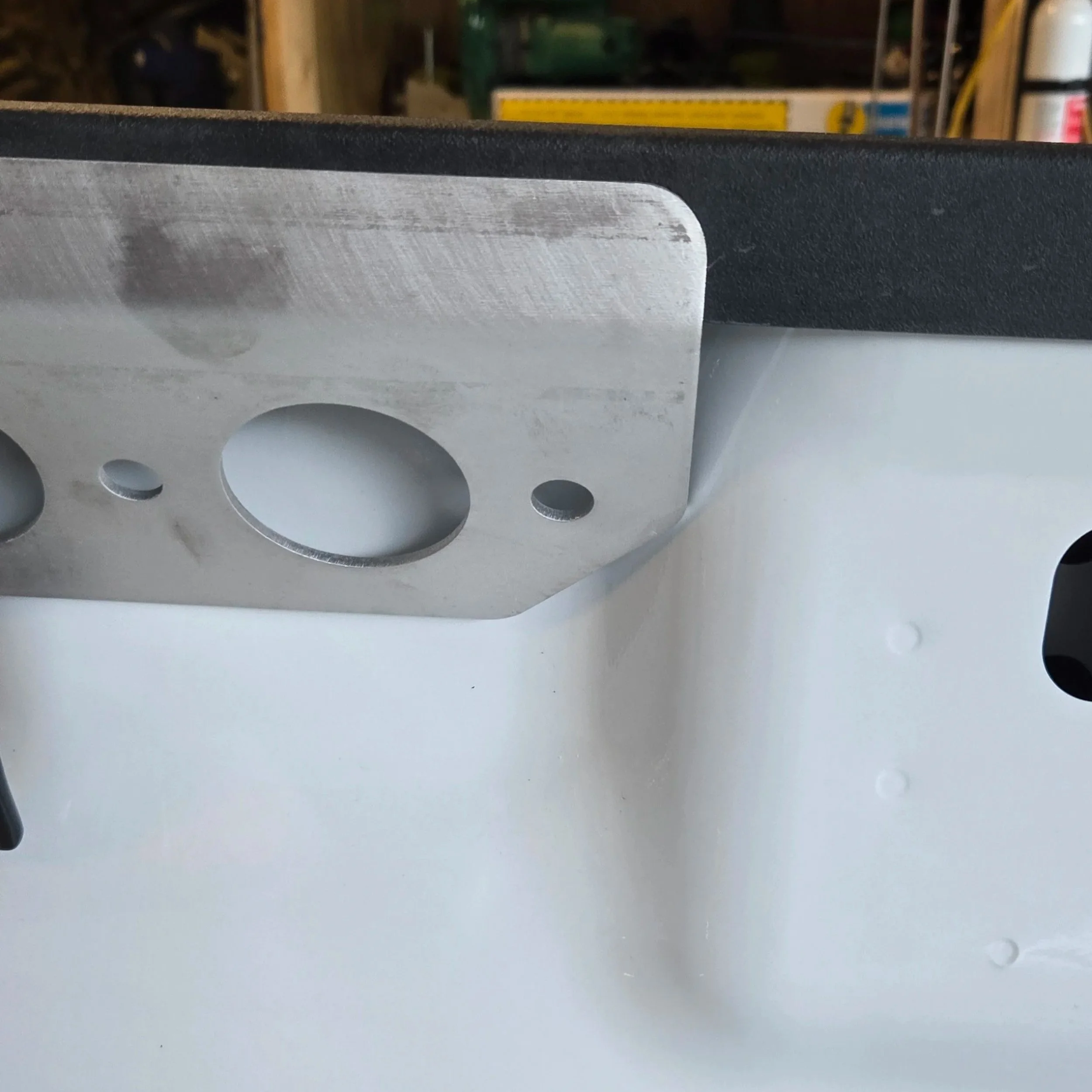

Close-up of a metal bracket mounted with a large circular hole and smaller holes on a light-colored surface, likely part of a structural or mechanical assembly.

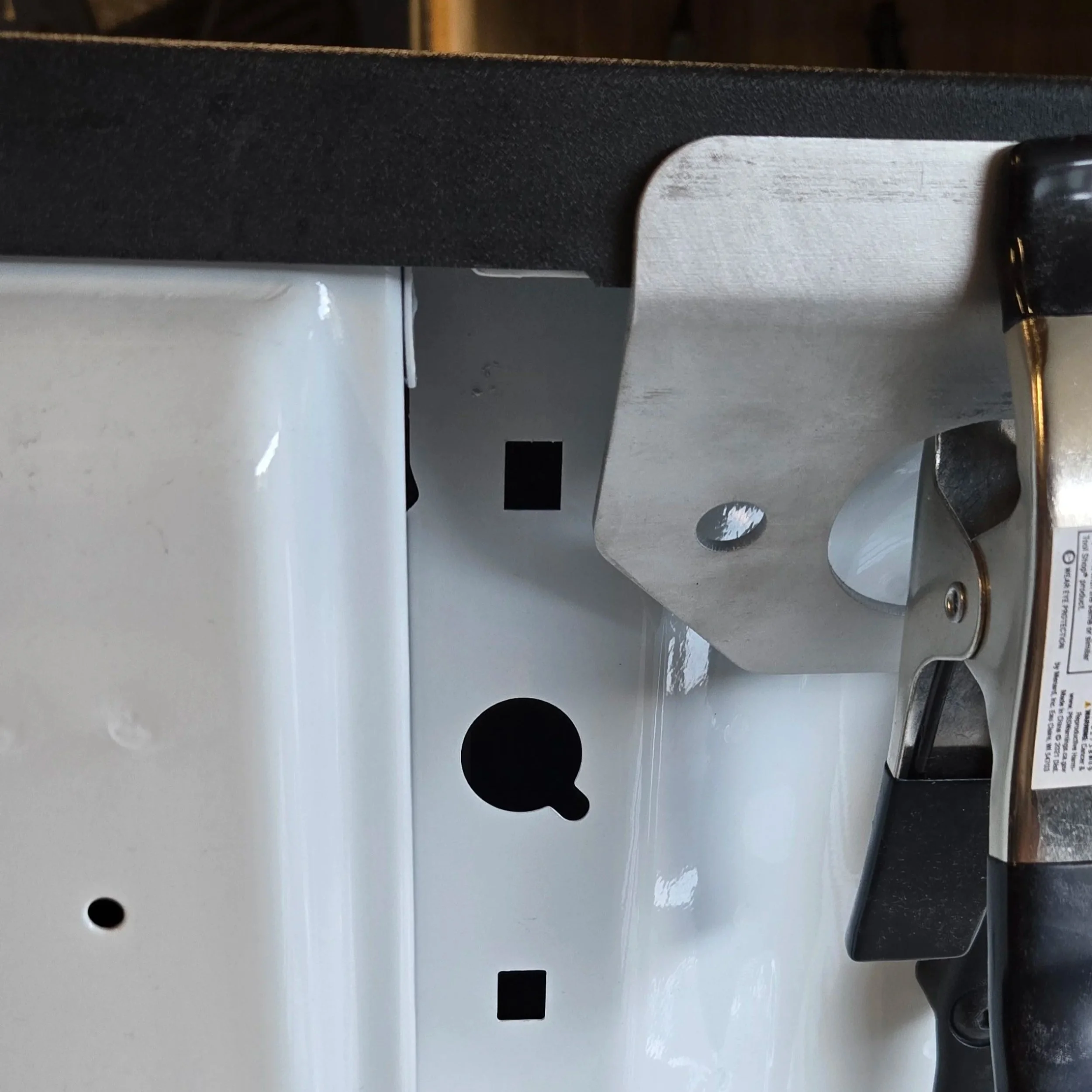

Close-up of a white metal structure with holes and a black plastic component, possibly part of a mechanical or electronic device.

Check both the front and back limits of the Unlimited Bed Rail, for clearance of bed accessories and confirm proper functionality.

Using a common hand clamp to hold the Unlimited Bed Rail system in place, be sure it is not being placed to high or low on the bed rail cap, as this will effect the mounting nut and bolt being properly secured.

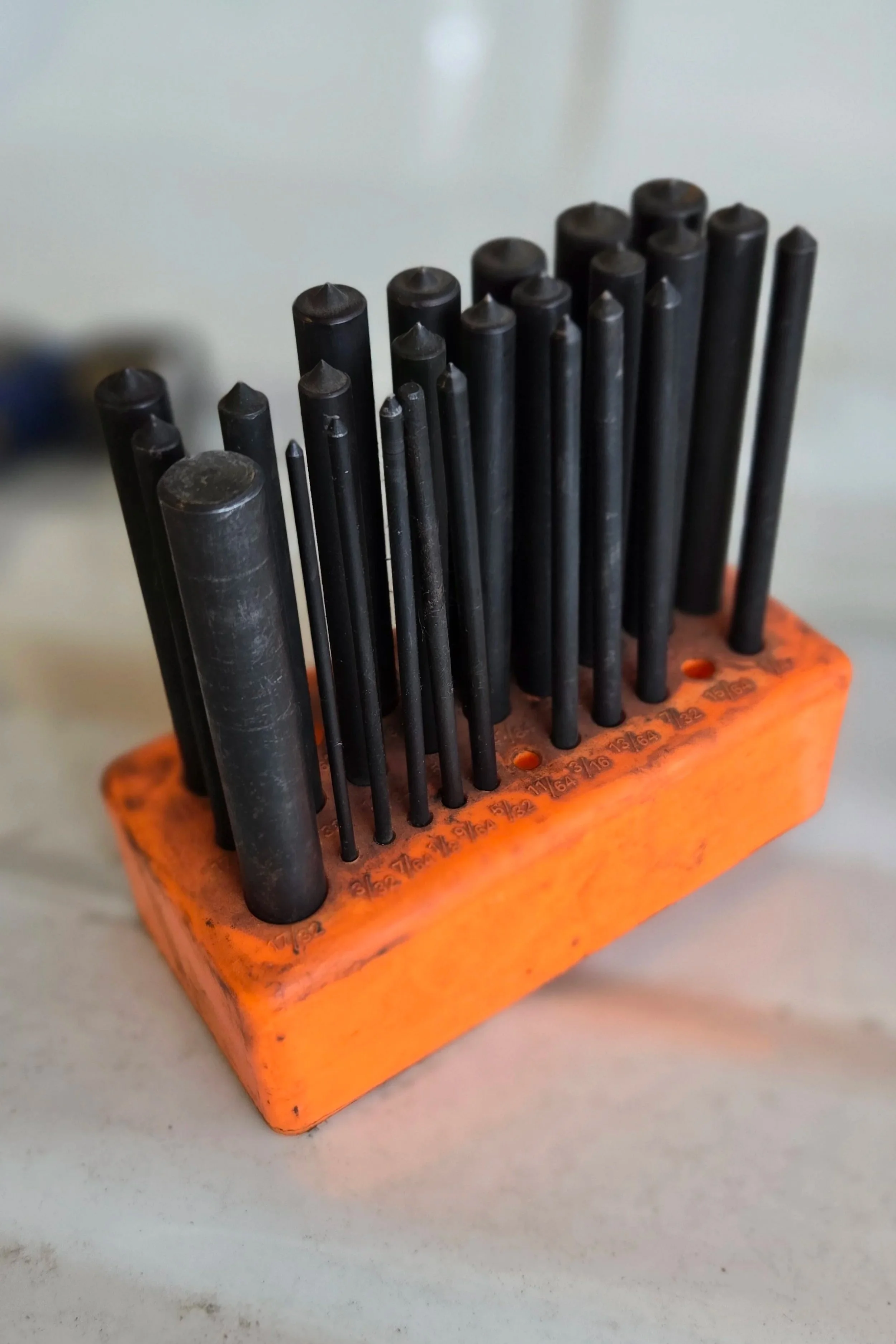

Set of various size metal punch or chisel tools in a orange plastic holder with size markings.

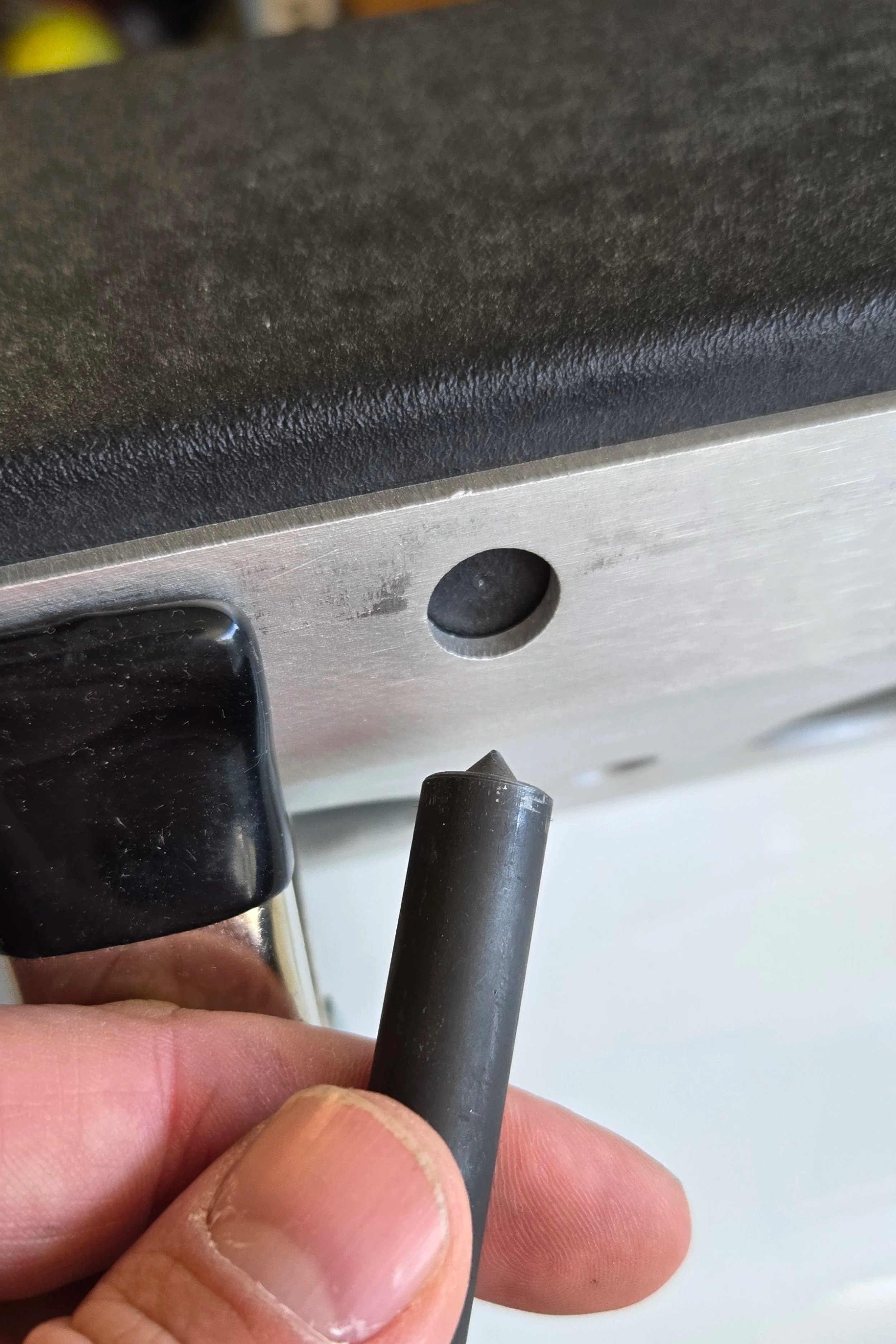

Close-up of a person's hand holding a black punch tool near a metal surface with a drilled hole, possibly for installing a screw or bolt.

Once you are satisfied with the placement, make a center mark for each mounting hole to be drilled through the mounting holes of the Unlimited Bed Rail either with an appropriate center punch or marker. Use a small drill bit (1/8 inch or 3/16 inch) to run a pilot hole through the mounting holes.

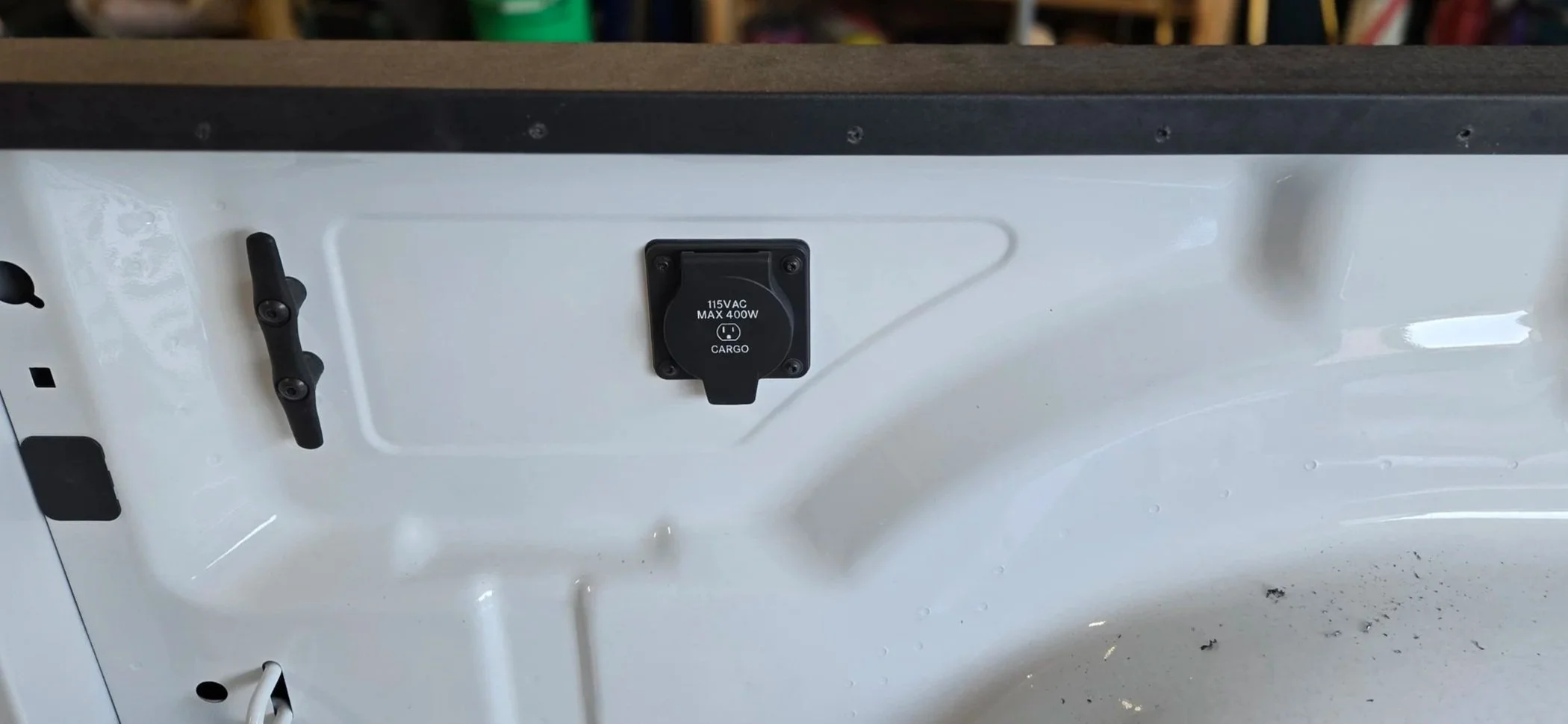

Close-up of the interior of a ram long bed, showing a black power outlet labeled "115 VAC MAX 400W" and a black handle on the left side.

Remove the Unlimited Bed Rail and finish drilling out the two holes using a 7/16 inch drill bit. Once the holes have been drilled out, check that any burs are cleaned up.

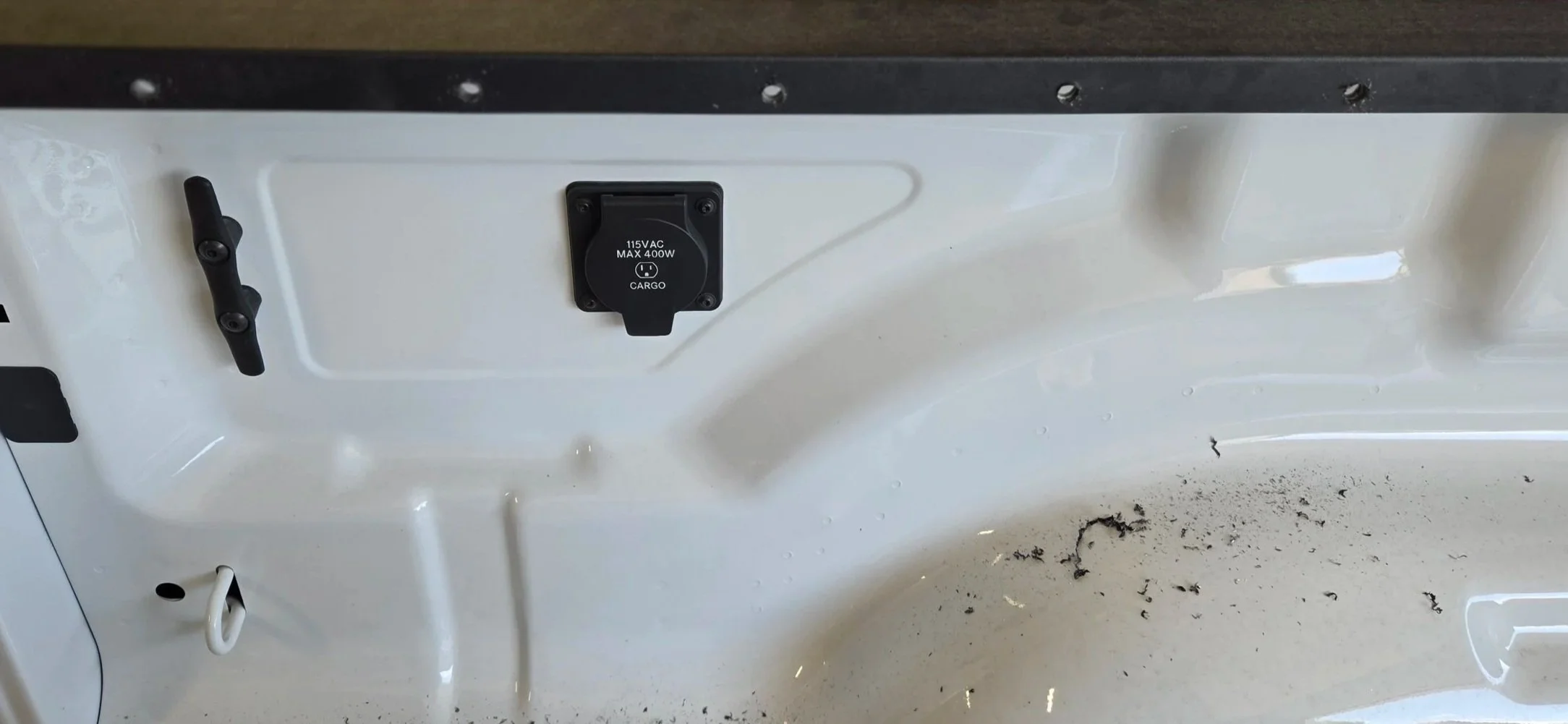

Interior of a Ram truck bed with a black power socket labeled 115V AC and 400W, a black handle, and some dirt or debris at the bottom.

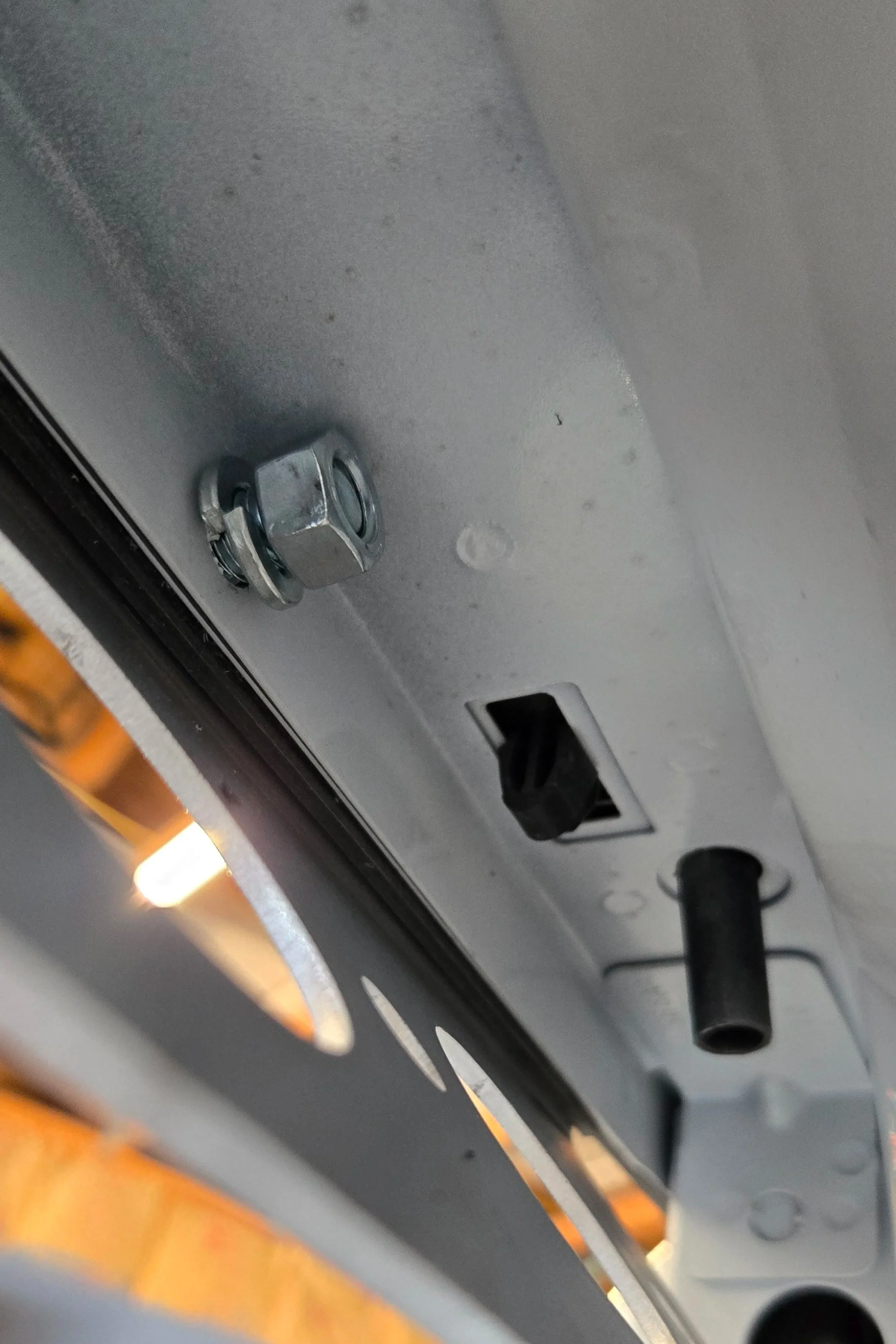

Close-up of the inside of the Unlimited Bed Rail bracket during installation, showing a metal nut, a black plastic component, and a metal tube or pipe.

Place the Unlimited Bed Rail back up to be mounted using the hardware included. Start all the nuts and bolts but do not tighten until all the nuts and bolts have been placed and started. Once you have all the nuts and bolts started along the bed rail, go ahead and tighten them down.
